DN

PN1.6/2.5/4.0MPa,Class 150Lb/Class 300Lb

WT(Kg)

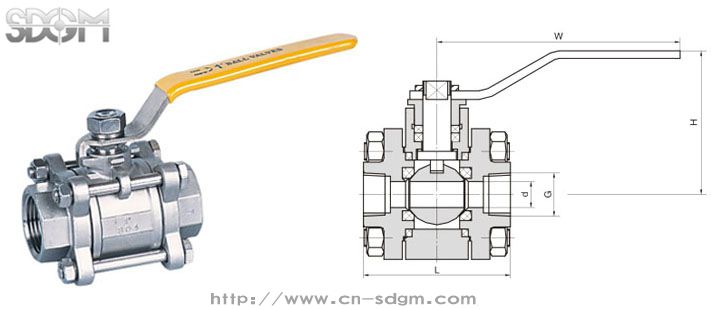

L

d

G

H

W

10

65

8

3/8”

40

110

0.6

15

75

11

1/2”

46

110

0.72

20

80

14

3/4”

54

110

0.9

25

90

21

1”

64

140

1.7

32

110

25

11/4”

69

155

1.9

40

120

32

11/2”

76

180

3.1

50

140

38

2”

86

300

4.3
